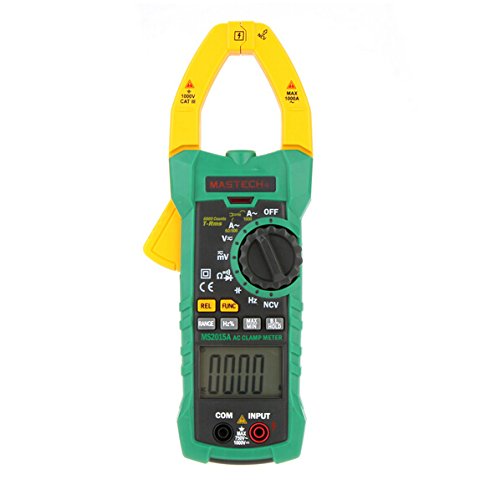

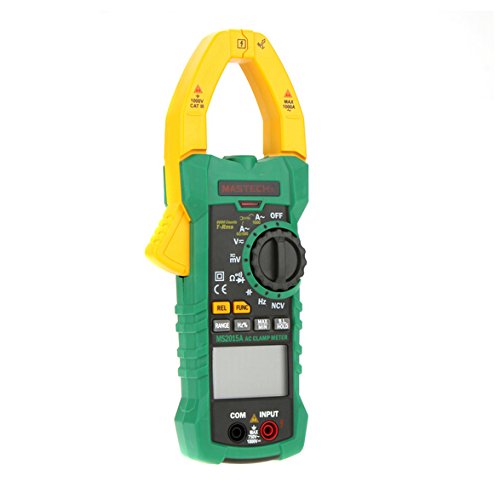

MS2015A Digital Clamp Meter - 6000 Counts, 1000A AC Current, True RMS, Capacitance & Frequency Tester with NCV Detection - Perfect for Electricians, HVAC Technicians, and DIY Home Electrical Projects

Product Description

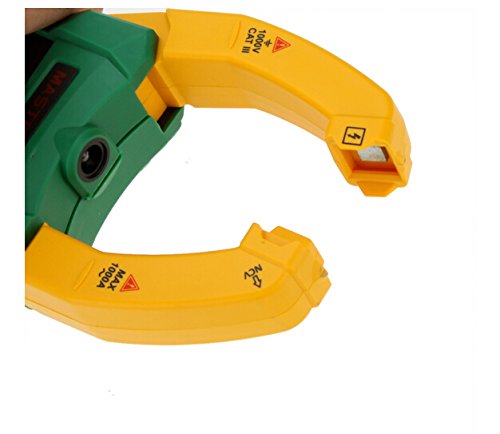

Features: Jaw Size up to 40mm/1.6 AC Current Measurement up to 1000A Tests AC/DC Voltage and AC Current, Resistance, Capacitance, Frequency and Duty Cycle Built-in Non-Contact Voltage Detector True RMS for AC Voltage and AC Current Work Light and Auto Power Off Diode Check and Continuity Test Overload protection Data hold function Auto range and manual range Maximum, minimum selection function Relative measurement function Flashlight function LCD Backlight Auto power off function Low battery indication function Speciafications: DC Voltage: 60mV/600mV/6V/60V/600V (0.7% +3) ; 1000V (0.8% +2) AC Voltage: 60mV/600mV/6V/60V/600V (0.8% +3) ; 750V (1% +4) AC Current: 60A/600A/1000A (2.0% +6) Resistance (Ohm): 600/6K/60K/600K/6M (0.8% +3) ; 60M (1.2% +3) Capacitance: 10nF/100nF/1000nF/10F/100F/1000F/10mF/100mF (4.0% +5) Frequency (From Clamp): 0~10KHZ (1.5% +5) Frequency (AC Voltage): 0~10KHZ (1.5% +5) Logic Frequency: 0~10MHz (0.5% +3) Duty Cycle: 0.1%~90% 3.0% General Characteristics: Dimension: 238 * 92 * 50mm Product Weight: 386g Power Supply: 1 * 9V 6F22 (not included) Package Size: 25.5 * 14 * 6cm / 10 * 5.5 *2.2in Package Weight: 695g / 1.5lb
