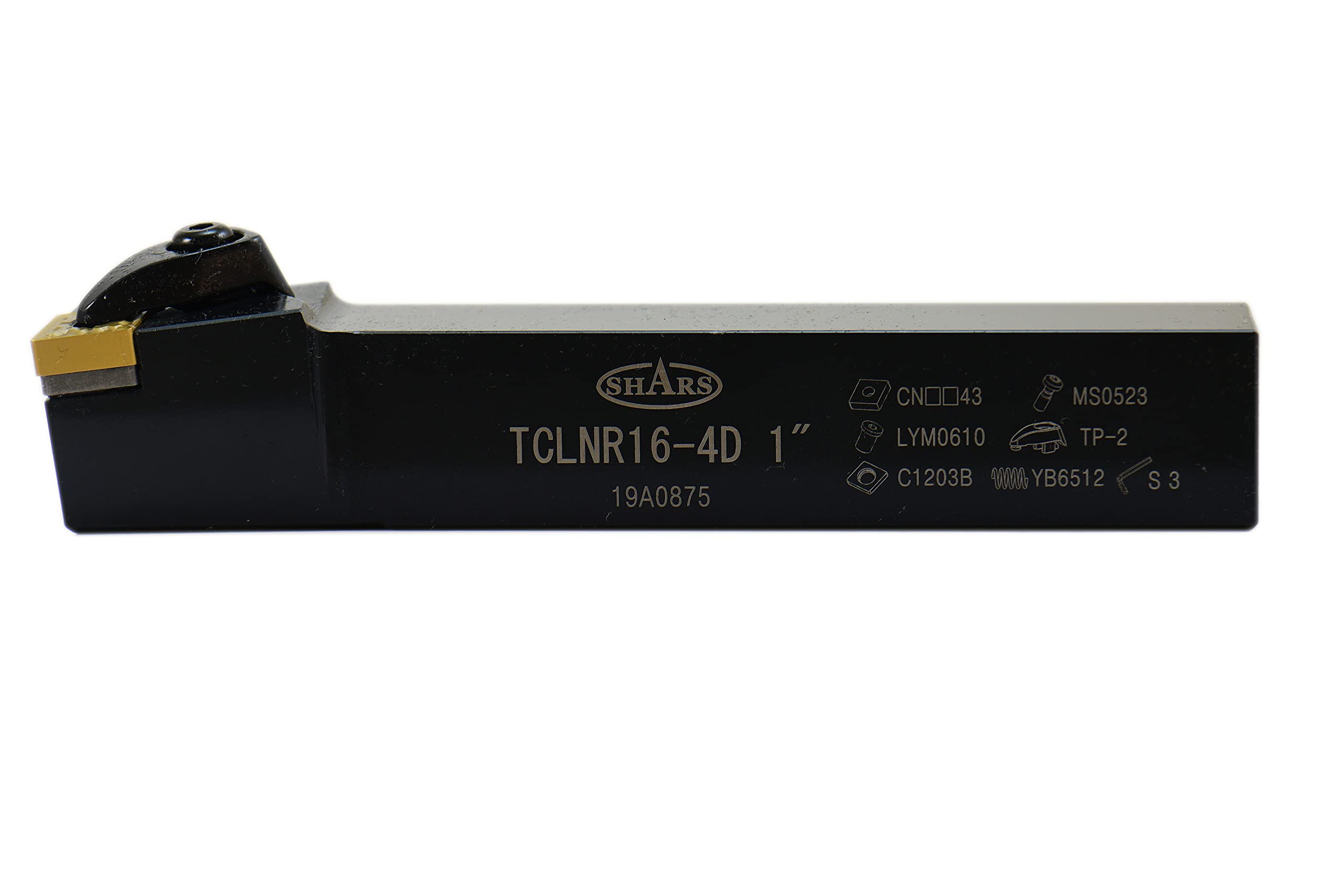

Shars 1" Indexable Right Hand Turning Tool Holder TCLN T-Type Clamp for CNMG Inserts 404-7831 - Perfect for CNC Lathe Machining & Metal Turning Operations

Product Description

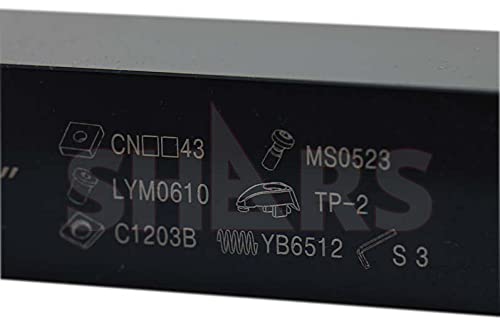

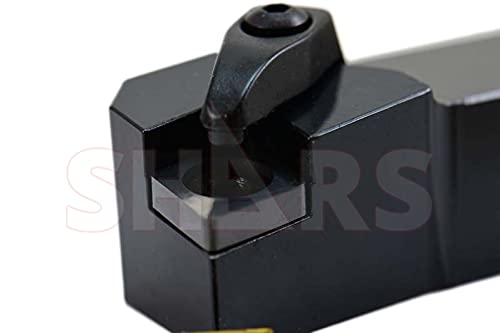

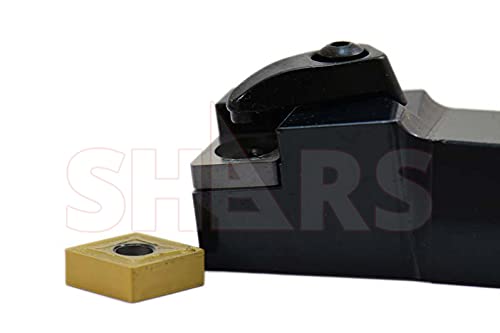

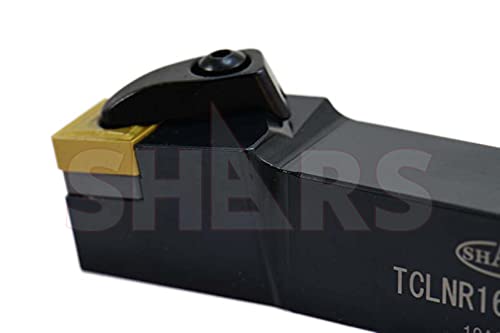

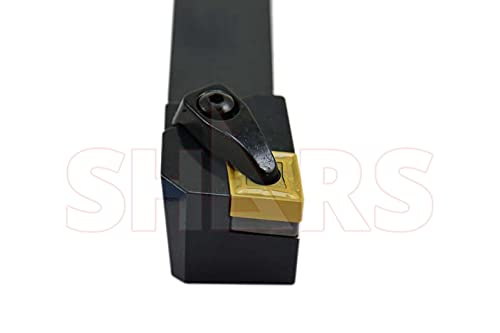

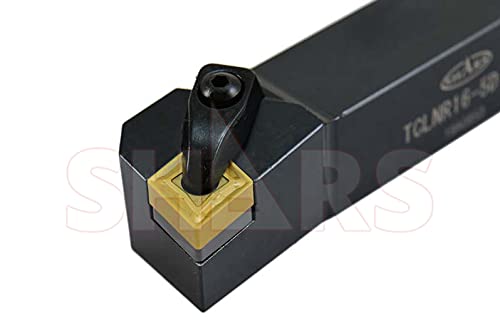

T-Style Clamping New Clamping mechanism allows clamping force to be applied not only downward but also pulling inward towards the tool body. Locating Pin Unique feature improves clamping rigidity and position accuracy which in turn would extend insert tooling life. Clamping Rigidity Locating pin on the front of the clamp makes an arc contact with the inner wall of insert hole, resulting an evenly distributed clamping force to be more secure and rigid. Closer Look Easy reference guide for insert number, screw, and other accessories is printed on the tool shank Locating Lug Locating lug on the back of the clamp matches with the slot on the tool body to guide the clamp to be seated repetitively which would improve clamping accuracy. TCLN T-Type Clamping Tri-Lock Tool Holder Shars Tool Application: For contouring, turning or facing FEATURES: Negative rakeNegative 5 degree cutting edge angle INSERT STYLE: CNMA, CNMG, CNMM, CNMP CUTTING DIRECTION: Right Hand SIDE CUTTING ANGLE: -5 degree SHANK MATERIAL: Steel INSERT HOLDING METHOD: Clamp Shank Size x OAL Insert I.C. & T Model # Clamp # & Clamp Screw Shim # & Shim # Screw Spring & Hex Wrench Buying Options Buying Options Buying Options Buying Options Buying Options Buying Options Customer Reviews — — — — — — Price — no data — no data — no data — no data — no data — no data Order No. 404-7828 1/2" x 4" 3/8" & 1/8" TCLNR08-3A TP-1 & MS0420 C0903B & LYM0508 YB5512 & S3 404-7829 5/8" x 4-1/2" 3/8" & 1/8" TCLNR10-3B TP-1 & MS0422 C0903B & LYM0508 YB5512 & S3 404-7830 3/4" x 4-1/2" 1/2" & 3/16" TCLNR12-4B TP-2 & MS0523 C1203B & LYM0610 YB6512 & S3 404-7831 1" x 6" 1/2" & 3/16" TCLNR16-4D TP-2 & MS0523 C1203B & LYM0610 YB6512 & S3 404-7832 1" x 6" 5/8" & 1/4" TCLNR16-5D TP-4 & MS0523 C1604B & LYM0810 YB6512 & S3 S4 404-7833 1" x 6" 3/4" & 1/4" TCLNR16-6D TP-4 & MS0523 C1904B & LYM1012 YB6512 & S3 S4 404-7834 1-1/4" x 6" 3/4" & 1/4" TCLNR20-6D TP-4 & MS0523 C1904B & LYM1012 YB6512 & S3 S4 404-7835 1" x 6" 3/4" & 1/4" TCLNR24-6E TP-4 & MS0523 C1904B & LYM1012 YB6512 & S3 S4 3/8" 7 Pcs Set Indexable Carbide Turning Tool Set in Fitted Case 1/2" 5 Pc Indexable Carbide TCMT Insert Turning Tool Set 1/2" x 1/2" x 4" Turning Tool & 3/8" x 5" Boring Bar 9pcs Set 1/2" x 1/2" RH Indexable Cutting Tool Universal External Threading Tool Holder 3/4" RH TVJN T-Type Clamp Indexable Turning Tool Holder for VNMG Insert 1/2" RH TWLN T-Type Clamp Indexable Turning Tool Holder WNMG Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.8 out of 5 stars 17 4.6 out of 5 stars 17 4.4 out of 5 stars 4 4.2 out of 5 stars 14 5.0 out of 5 stars 2 3.8 out of 5 stars 10 Price $95.95$95.95 $48.50$48.50 $180.95$180.95 $41.95$41.95 $40.00$40.00 $32.95$32.95 Order No. 404-2889 404-1041 404-2895 404-1979 404-7842 404-7847
