8125 AC Load Current Clamp Sensor 500Amp 40mm Conductor - High Accuracy Clamp Meter for Electrical Testing, HVAC Maintenance & Industrial Applications

Product Description

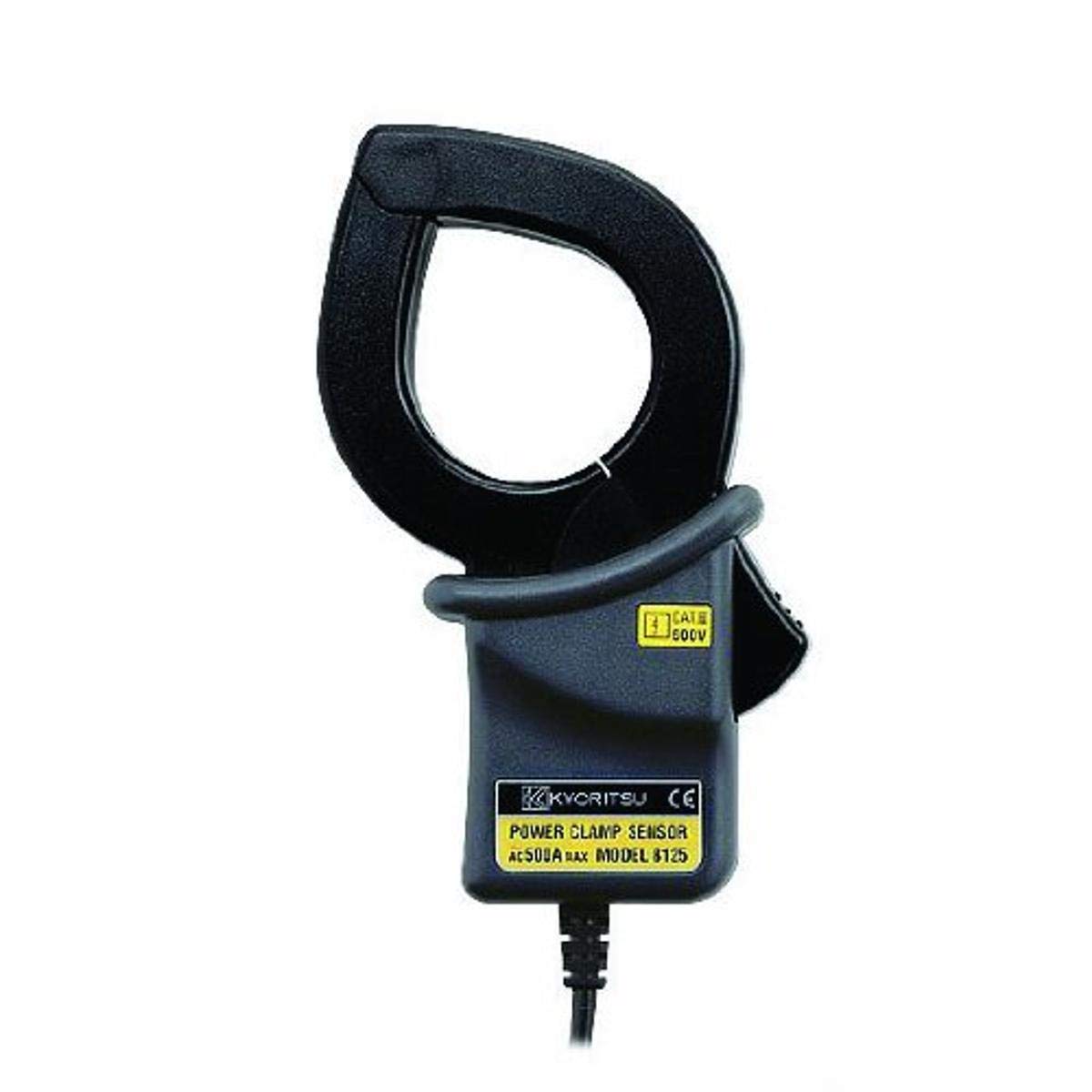

Kyoritsu 8125 load current clamp sensor. In order to monitor energy saving and to control the electric facilities, it is essential and imperative to control the leak and load currents from mains and branch power lines up to the equipment. Clamp sensor is easy to carry and simple to install. Load current detection type clamp sensors provide superior characteristic in phase for the use of power meter. Rated current 500Amp AC. 40mm conductor size. Output voltage: AC 500mV/500A (AC 1mV/A). Accuracy: +/- 0.5 percent rdg +/- 0.1mV (50/60Hz), +/- 1.0 percent rdg +/- 0.2mV (40Hz to 1kHz). Phase shift within +/- 1.0 degree. Output connector: Mini-DIN 6-pin. 0 to 50 degree c temperature range. Withstand voltage: 5350V AC for 5 seconds. Approximate 3m cable length. Approximate 2 ohm output impedance. Accessories includes: portable case, instruction manual, cable marker. Measures 128 mm length by 81 mm width by 36mm depth.
