SKU:64964205

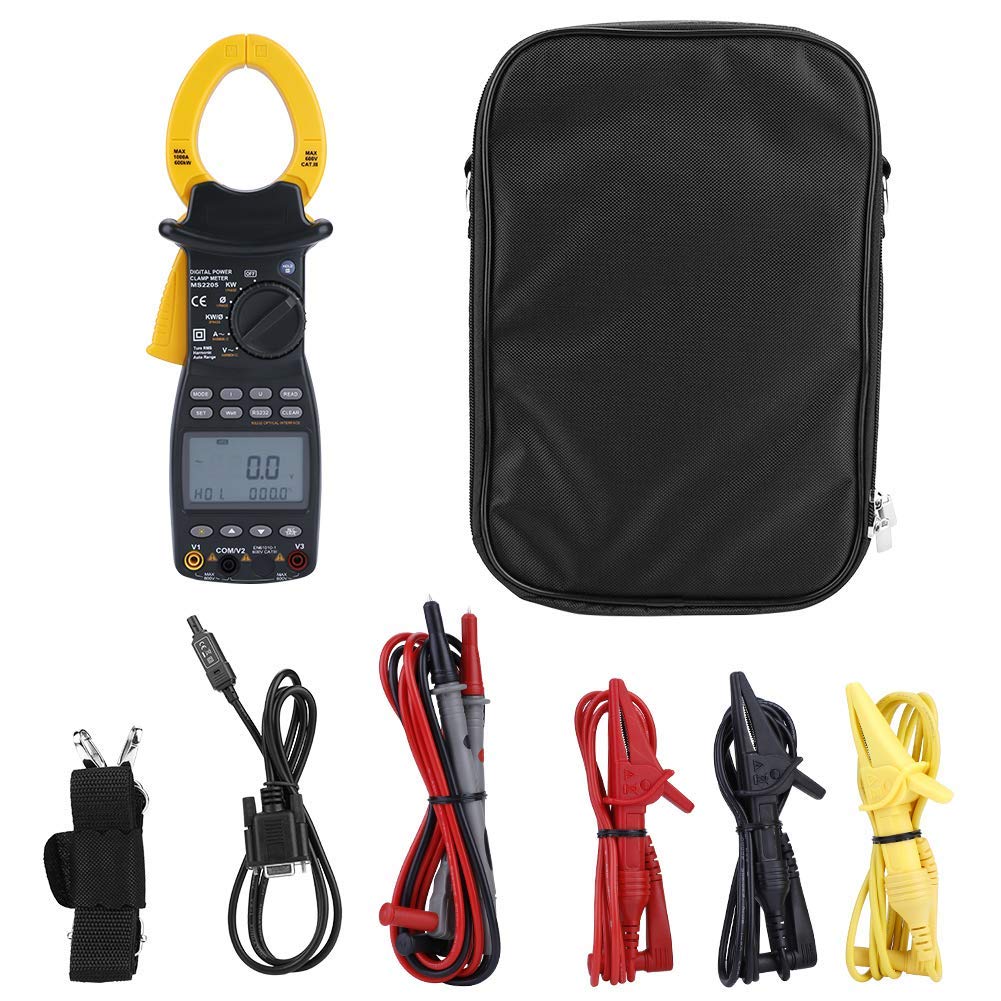

Specifications:: PEAKMETERJaw opening size: R50mmData storage: 100 groupsDisplay: 6000 countInterface: Rs232AC voltage: 0.1 ~ 600 v±(1.2% + 5)AC current: 0.1-1000 + / - (2.0% + 5)Active power: 0.1kW~600kW ±(3.0%+5)Apparent power: 0.1 kva ~ 600 kva±(3.0% + 5)Reactive power: 0.1kVAr~600kVAr ±(4.0%+5)Power factor: 0.3 ~ 1±(2.0% + 2)Harmonic Measurement: 45Hz~65HzHarmonic NO.1 ±(3.0%+10)Harmonic NO.2-6 ±(3.5%+10)Harmonic NO.7-8 ±(4.5%+10)Harmonic NO.9-10 ±(5.0%+10)Harmonic NO.11-15 ±(7.0%+10)Harmonic NO.16-20 ±(10%+10)Power supply: 4 x1.5v AA battery (Not included)Safety category: CE cat.III 600V RoHSPackage size: 32.5*22*6.5cm/12.8*8.66*2.56inWeight: 1379gPackage includes:1 * MS2205 Clamp Meter (battery Not included)1 * Test Probe3 * Test Clip1 * Rs232 Interface Cable1 * Portable bag1 * StrapWe have commodity security services. If the product you received has quality problems, please feel free to contact us, we can provide you with a return service.
【Used For】The 3-phase digital power meter knob switch is designed with a very complete function, has a strong feeling of pause,which is easy to measure.Standard high-end test pens with high pressure resistance. This Clamp Meter is Designed to safely and accurately troubleshoot a variety of automotive and household electrical problems. This portable Digital Multimeter is a practical tool for electricians, hobbyists, and general household use.
【Practical Tool】The 3-phase clamp-type digital power meter is a hand-held intelligent harmonic power tester, with both functions of digital current testing and power testing. The tester is comprised of three channels including voltage, current, and power as well as a micro single chip system, and it is equipped with a powerful software for measurement and data processing functions. For the measurement of the sung / three phase power, the meter is your ideal choice.
【High 】This Digital Clamp Meter has 6000-digit backlit LCD display provides clear readings.With backlight, you can accurately read the measurement results under poor lighting conditions,suitable for almost occasions.This Digital Clamp Meter has Automatic shutdown, automatic ranging, data hold,undervoltage indication, true RMS measurement.With PC RS232 interface and windows graphics software.The 3-phase digital power meter has stable and comfort.
【Humanized Design】The multimeter uses 4 pieces 1.5V AAA batteries(not included)as power supply.Automatic shutdown and low battery reminder save power and worry. Ergonomically designed meter body for comfortable grip. With clamp structure by hand, small volume and light weight,and equipped with a carrying case ,easy carrying and storing.With record storage function, it can store 100 groups data.All ranges of the Handheld Clamp Meter are overload protected for safer operation.
