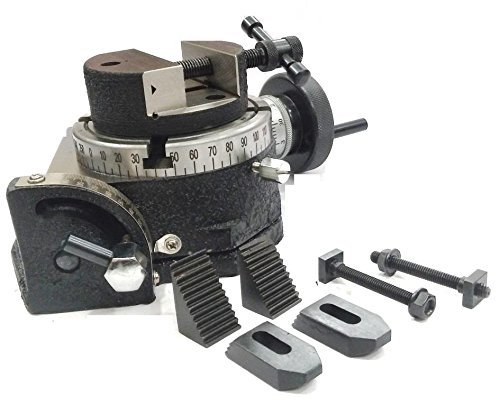

4" (100mm) Tilting Milling Indexing Rotary Table with M6 Clamp Kit & 80mm Round Vice - Precision Metalworking & Engineering Machine Tool for CNC, Drilling, and Milling Operations

Product Description

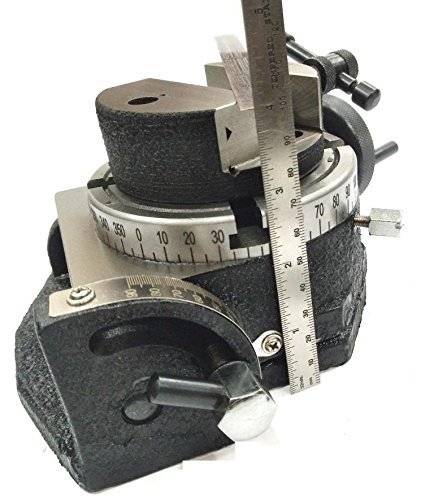

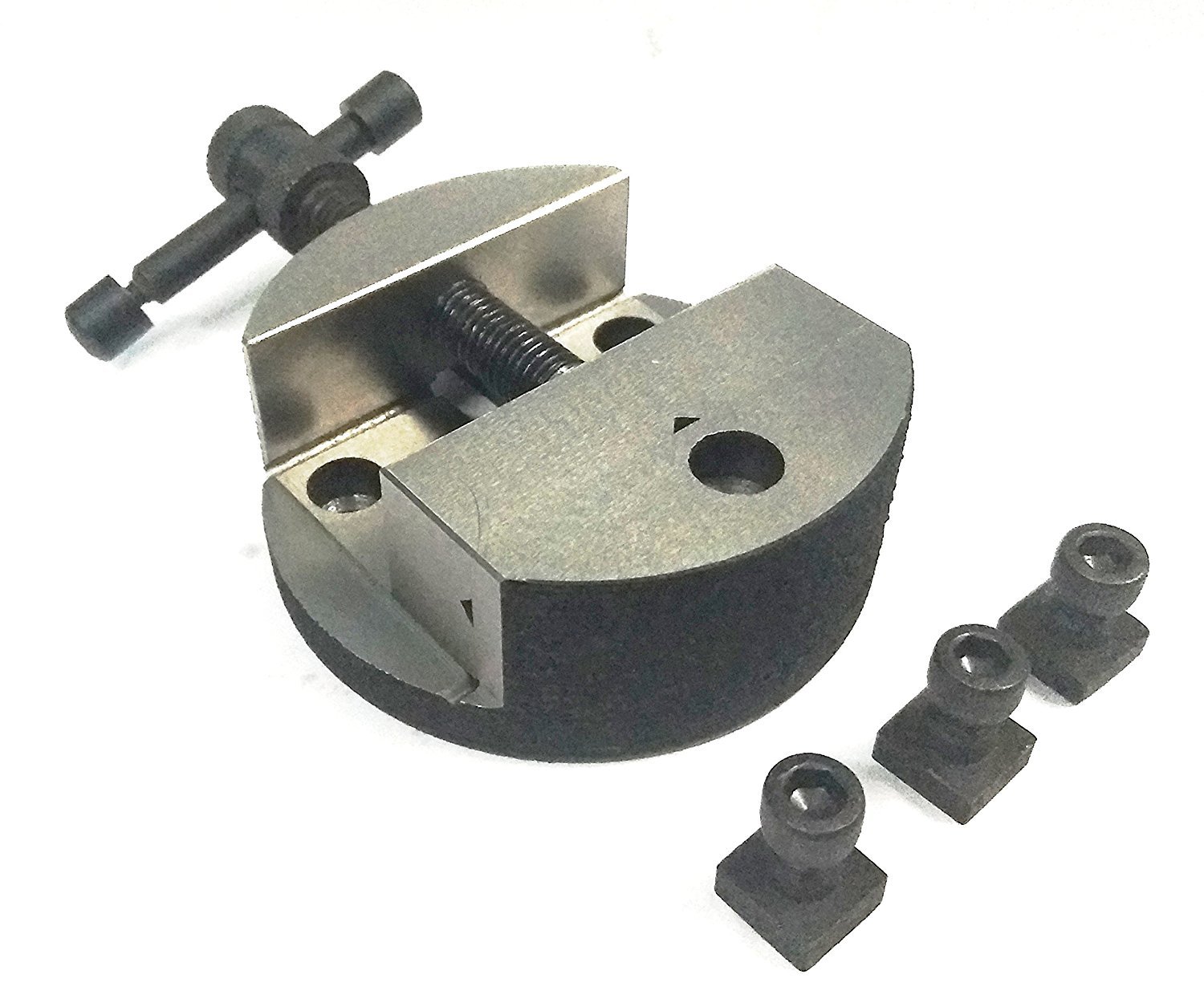

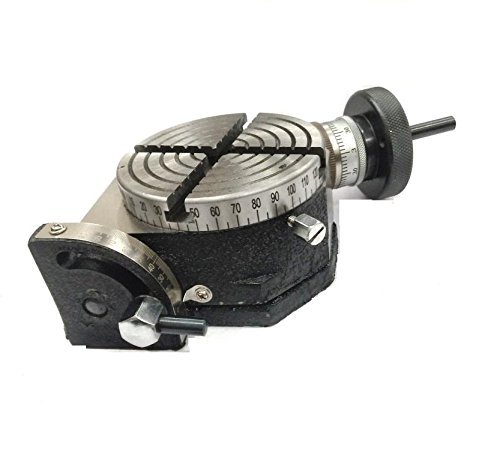

Features to tilts between 0- 90 Degrees & can be locked at any position. Table diameter 100 mm Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Center Height in vertical position: 2-5/8" (66 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in Horizontal & vertical position. SUPPLIED WITH A SUITABLE M6 CLAMP AND A 80 MM DIAMETER CASTE IRON QUALITY ROUND VICES WITH FIXING T NUTS BOLTS Made form Quality close grain Caste Iron -Designed to fit our 3" (75 mm) & 4"(100 mm) Rotary Tables Diameter of Base : 80 mm * Jaw Width : 54 mm * Jaw Depth: 20 mm * Jaw Opening : 32 mm * Height : 29 mm These vices are counter- drilled in a manner that these can fit to a 3 as well 4 slot table. The moving jaw has V-grooves to hold Round objects. Precisely Ground on Base,Top, Jaws & Base. Rest Body is painted for a long rust free life.
