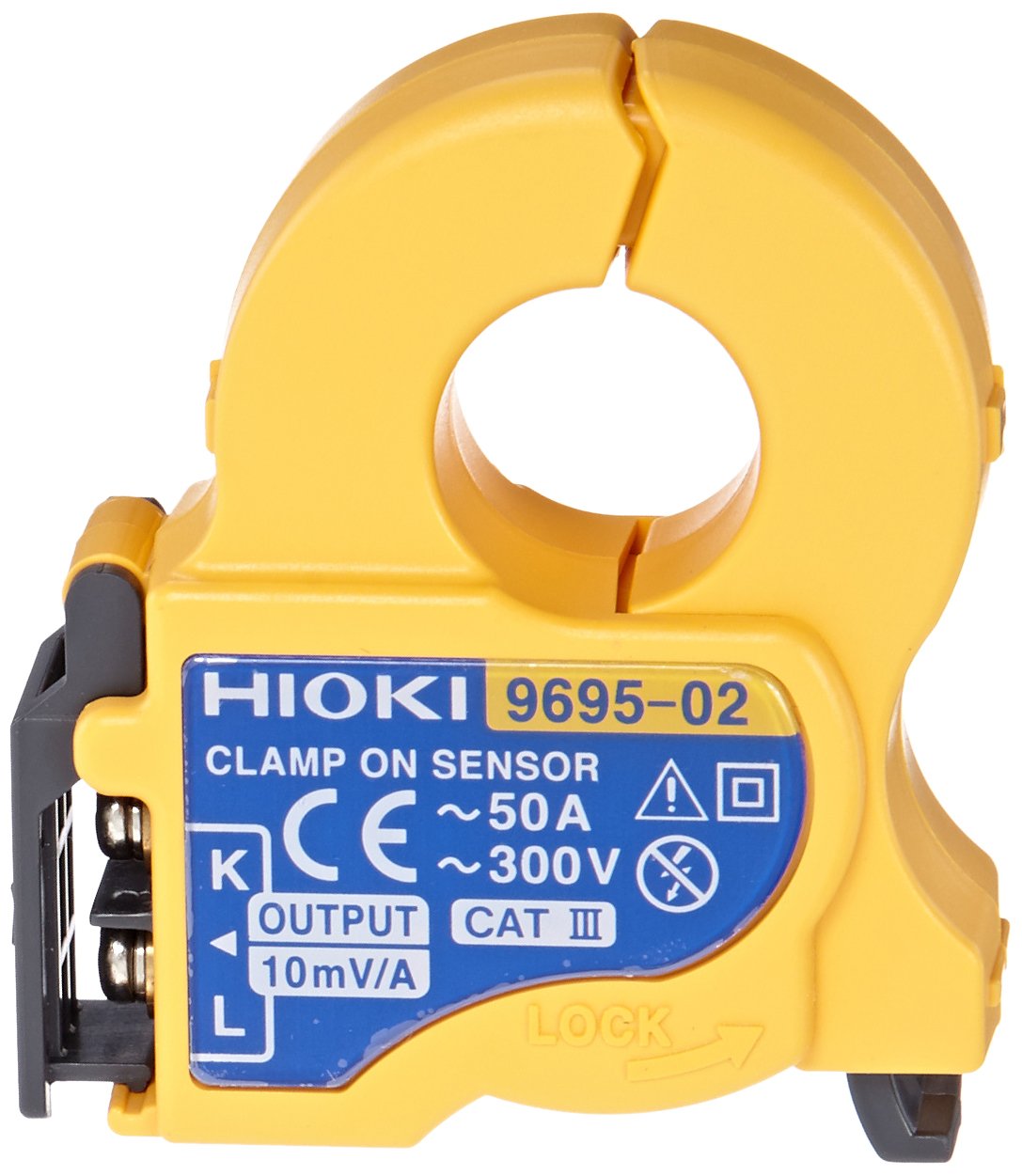

Hioki 9695-02 50A AC Current Clamp-On Sensor with Connection Cord - Perfect for Electrical Testing, HVAC Maintenance & Industrial Equipment Monitoring

Product Description

Measurable conductor diameter: 15mm. Primary current rating: AC 50A. Output voltage: AC 10mV/A. Accuracy Amplitude (45 to 66 Hz): +/-0.3 percent rdg. +/-0.02 percent f.s. Accuracy Phase (5Hz to 5kHz): within +/-2 degree. Frequency characteristic (accuracy deviation): within +/-1.0 percent at 40Hz to 5kHz. Maximum rated voltage to earth(insulated conductor): 300Vrms. Maximum allowable input (45 to 66 Hz): 60A continuous. Measures 51mm width by 58mm height by 19mm depth.
