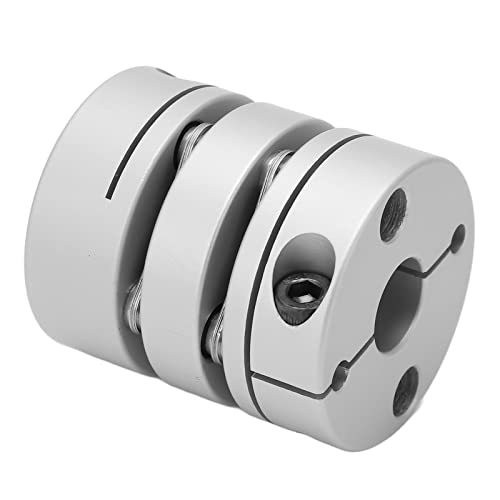

High Torque U-Shaped Clamp Tight Coupler - 21Nm Maximum Torsion, Double Diaphragm Servo Motor Coupling for CNC Machines & Industrial Automation

Product Description

Feature:1. ROBUST MATERIALS: Aluminum alloy wheels are lightweight and stainless steel discs are strong, durable for a long service life2. TIGHT CLAMP: Clamp type installation, can be firmly connected to the shaft, adapt to angle, parallel deviation3. SCOPE OF APPLICATION: The coupling is suitable for connecting servo motors, stepper motors, encoders, screw drives, machine tool platforms, etc.4. TECHNICAL PARAMETERS: Rated torsion for 10.5Nm, maximum torsion up to 21Nm, outer diameter is 44mm, useful and practical5. STABLE AND DURABLE: Double diaphragm coupling coupler come with stable structure, excellent performance and long service lifeSpecification:Item Type: Double Diaphragm Coupling CouplerMaterial: Aluminum alloy, stainless steelOuter Diameter: Approx. 44mm / 1.73inShaft Diameter: Maximum: Approx. 14mm / 0.55in, Minimum: Approx. 10mm / 0.39inAxial Displacement: ±0.45K²aEccentricity: 0.25KrAngular: 2.2aStatic: 5200Nm/radRadial: 10000Nm/radRated Torsion: 10.5NmMaximum Torsion: 21Nm Package List:1 x Double Diaphragm Coupling CouplerNote:Pay attention to correct operation.
