SKU:20009696

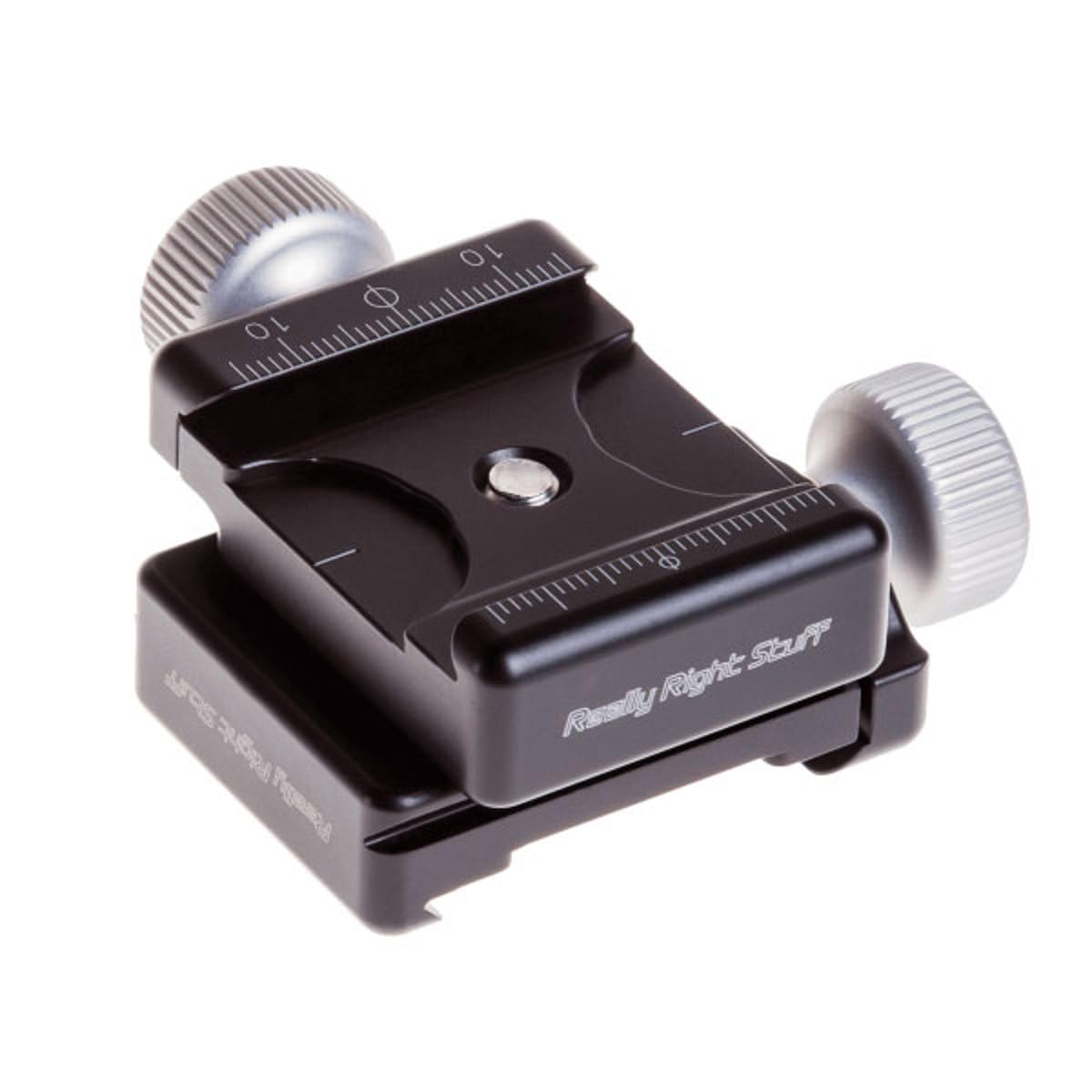

The Mini-clamp Package is to be used when you need a double-sided clamp (as when using our camera bars). Add this package to our camera bars, nodal slides or multi-purpose rails for a very versatile setup allowing you to mount lens plates, foot replacements, or camera plates.Features: The B2-FAB/mAS Package includes one each B2-FAB mini-clamp, B2-mAS mini-clamp, 1/4"-20 screw, and 5/32" hex key. Clamps are mounted back to back. Clamping orientation can be parallel or perpendicular. To swap the clamping orientation, simply loosen the screw (use included hex key) one full rotation, then pull clamps apart. Rotate 90 degrees, seat back together, and tighten the screw. The simple, low profile design allows a collared lens or camera to be fixed in the top half of the clamp and still allow the Mini-clamp Package to slide fore-aft (lens) or side-to-side (camera) on our Multi-Purpose Rail or Camera Bar. This makes for an affordable focus rail/nodal point slide for collared lenses or a sliding stereo photography set-up.
Length Jaw 1.5 (38mm)
Dimensions (W x H) 2.9 x 0.6" (74 x 15mm)
Weight 2.3 oz (64g)
Length Jaw 1.5 (38mm)
Dimensions (W x H) 2.9 x 0.7" (74 x 18mm)
